Atari Lynx

The first handheld with a backlit colour screen

  • 1989Released
  • 4thGeneration
  • AtariDeveloper

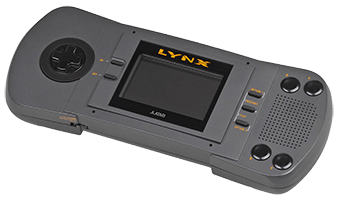

Atari Lynx

Atari Lynx Specifications

Processor
MOS 65SC02 (8-bit)
Processor Speed
4 MHz
RAM
64 KB
GPU
Suzy (16-bit custom CMOS chip)
GPU Speed
16 MHz
Resolution
160 x 102 pixels
Available Colors
4,096 (12-bit) palette
Maximum Colors
16

Overview

The Atari Lynx is a handheld console released by Atari in September 1989. It is widely recognised as the first handheld game console with a colour LCD screen.

The Lynx had several innovative features for its time, including the colour screen, a backlit display, a switchable left- or right-handed layout and the ability to network with up to 17 other units.

The Lynx started well, but sales slowed as more competition arrived. Combined lifetime sales of the Lynx and Sega’s Game Gear were about 7 million units, while the Game Boy had sold 16 million by the same time.

Critics praised the handheld at the time, with one claiming that it “throws the Game Boy into the prehistoric age”, citing its built-in sprite scaling and strong multiplayer support as big advantages over the Game Boy.

Key Features

Colour LCD Screen

The first handheld with a backlit colour LCD screen.

Ambidextrous Layout

A switchable layout for left- or right-handed players.

Multiplayer Networking

Could network with up to 17 other Lynx units.

Sprite Scaling

The 16-bit Suzy chip gave it built-in sprite scaling.

Advertisement

Atari Lynx Emulators

Which one to pick

  • Holani

    Active, version 1.0 in 2026

    • Windows
    • Linux
    • Apple Silicon Macs

    Known forCycle-stepped emulation written in Rust, with a free boot ROM so no BIOS file is needed, and a libretro core.

  • Felix

    Last release April 2025

    • Windows

    Known forTools for Lynx programmers: a debugger, Lua scripting and WAV and VGM audio capture, with accurate opcode timing.

  • Mednafen

    Last release April 2024

    • Windows

    Known forA multi-system emulator driven from the command line, whose Lynx emulation builds on Handy's code.

  • Handy

    Ended, last release 2007

    • Windows
    • macOS

    Known forThe classic Lynx emulator, which handles the vast majority of the Lynx's features. Needs the Lynx BIOS.

In short

Holani is the actively developed choice for Windows, Linux and Apple Silicon Macs, and needs no BIOS file. Felix on Windows is aimed at Lynx programmers, with a debugger and Lua scripting, and Mednafen runs Lynx games from the command line alongside many other systems. Handy is no longer developed and is kept here as an archive; its code lives on in Mednafen and RetroArch.
